Product Description:

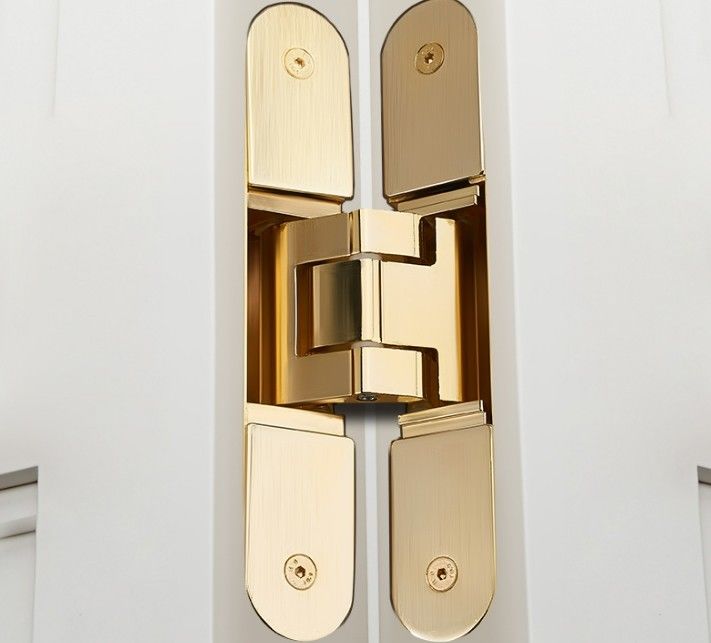

NEW 3D ADJUSTABLE CONCEALED HINGES
Introducing our new invisible concealed door hinges available in two different sizes for heavy-duty doors. These hinges provide three-dimensional adjustment which includes depth, vertical, and horizontal. This enables the door to be aligned perfectly with the wall in case of frameless architecture. The maximum opening angle is 180 degrees and the hinge is reversible for right/left doors.
These hinges are also available in Silver, Matt Black, and White finishes. They can be used on both interior and exterior doors. Additionally, they come with self-lubricating anti-friction washers, fire-proof, and tested for 200,000 cycles.
Specifications:
Option 1 - 5970: 25mm width x 152mm height, Minimum Door Thickness; 36mm. 2 x hinges can take a 50kg door, 3 x hinges can take a 60kg door.
Option 2 - 5972: 28mm width x 177mm height, Minimum Door Thickness; 40mm. 2 x hinges can take an 80kg door, 3 x hinges can take a 90kg door.
Don't hesitate to contact us for more information on these stunning invisible door hinges.
Features:
- Product Name: Heavy Duty Invisible Hinge
- Warranty: 1 Year
- Opening Angle: 180°
- Drilling Distance: 25mm
- Weight: 0.5kg
- Size:
- 30x140mm
- 25x150mm
- 28x177mm
- 34x246mm
- Features:
- Concealed Hinges
- 3D Adjustable Silent Hinge
- Hidden Cross Hinge
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Heavy Duty Invisible Hinge |
| Size |
30x140mm, 25x150mm, 28x177mm, 34x246mm |
| Weight |
0.5kg |
| Drilling Hole Diameter |
5mm |
| Suitable Door Thickness |
18-22mm |
| Drilling Distance |
25mm |
| Max Load |
120kg |
| Opening Angle |
180° |
| Package |
2pcs/set |
| Warranty |
1 Year |
This product is also known as 3D Adjustable Hidden Hinge, 3D-ADJUSTABLE CONCEALED HINGE, or 3D Adjustable Silent Hinge.
Applications:
The Heavy Duty Invisible Hinge is a 3D adjustable hinge perfect for various applications and scenarios. It is ideal for use in furniture, cabinets, doors, and other fixtures where a concealed hinge is required. The opening angle of the hinge is at 180°, providing ample space for easy access and movement. With its 3D design, the hinge is adjustable in three dimensions, allowing for precise alignment and perfect fit.
The Heavy Duty Invisible Hinge can support up to 120kg of weight, making it a reliable choice for heavy doors and furniture. Its finish in satin nickel provides a sleek and modern look that can complement any design or style. Each package comes with 2pcs/set, providing convenience and value for our customers.
With its exceptional quality and versatility, the Heavy Duty Invisible Hinge is perfect for various product application occasions and scenarios. It can be used in residential and commercial settings, such as in homes, offices, and public buildings. It is also a great choice for interior designers, architects, and contractors who are looking for a high-quality and reliable hinge for their projects.
Overall, the Heavy Duty Invisible Hinge is a must-have for anyone who needs a durable and adjustable hinge that can support heavy loads. With its 3D concealed hinge design and satin nickel finish, it is a stylish and practical solution for various applications and scenarios.
