SOSS Invisible Hinge model 203 is for use in wood or metal applications

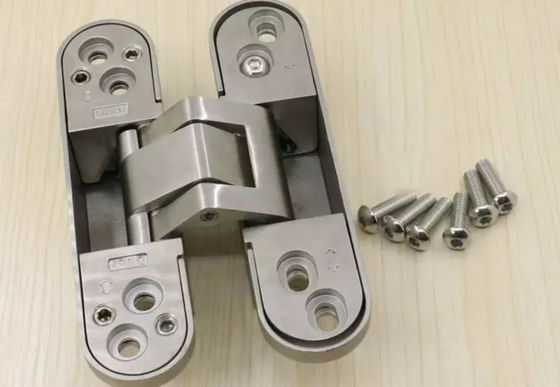

Large Image : SOSS Invisible Hinge model 203 is for use in wood or metal applications

Product Details:

Place of Origin:	China
Brand Name:	Heavy Duty Invisible Hinge
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Discussible
Packaging Details:	Regular Packaging
Delivery Time:	5-8 orking Days
Payment Terms:	L/C, T/T,
Supply Ability:	100000 pieces/month

Contact Now

SOSS Invisible Hinge model 203 is for use in wood or metal applications

Description

Drilling Distance:	25mm	Max Load:	120kg
Warranty:	1 Year	Suitable Door Thickness:	18-22mm
Material:	Stainless Steel	Package:	2pcs/set
Finish:	Satin Nickel	Size:	30x140mm, 25x150mm, 28x177mm, 34x246mm
Highlight:	Wood SOSS Invisible Hinge , Metal SOSS Invisible Hinge , SOSS Invisible Hinge model 203

SOSS Invisible Hinge model 203 is for use in wood or metal applications

Dimensions

SOSS® Invisible Hinge model #203 is for use in wood or metal applications that are 3/4″ to 1″ thick. The model #203 is made of zinc and steel materials. This cabinet style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

A	1/2″ (12.70mm)
B	23/64″ (9.13mm)
C	1-3/4″ (44.45mm)
D	7/64″ (2.78mm)
E	1/8″ (3.18mm)
F	3/4″ (19.05mm)
G	1/32″ (0.79mm)
H	23/32″ (18.26mm)
I	3/16″ (4.76mm)
Min. Matl. Thickness	3/4″ (19.05mm)
Wood Screw Sizes	#6×1″ (3.5x25mm)
Soft Wood Pilot Hole	No. 52
Hard Wood Pilot Hole	No. 44
Machine Screw Sizes	#6-40×1/2″
Hinge Weight	.11 lb.
